xTool Flexible Fixture – Precision Workholding Solution for Irregular and Complex Shapes
Professional-Grade Fixturing for Advanced Laser Processing

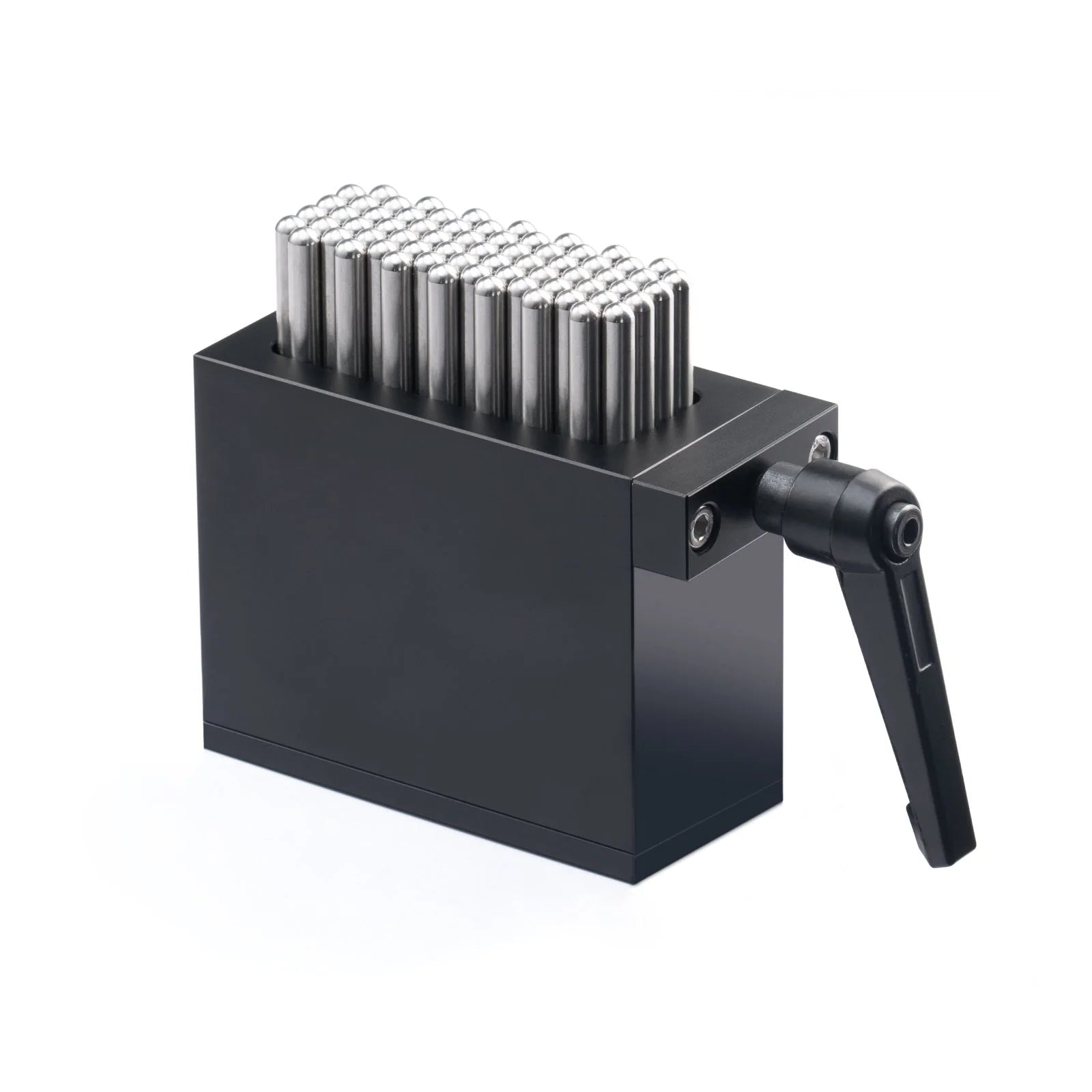

The xTool Flexible Fixture is a high-precision workholding system designed to securely position irregularly shaped objects during laser engraving and cutting operations. Engineered with a 304 stainless steel pin bed (30×79mm), this innovative fixture adapts to complex geometries, providing exceptional stability at any desired angle.
Key Features & Benefits

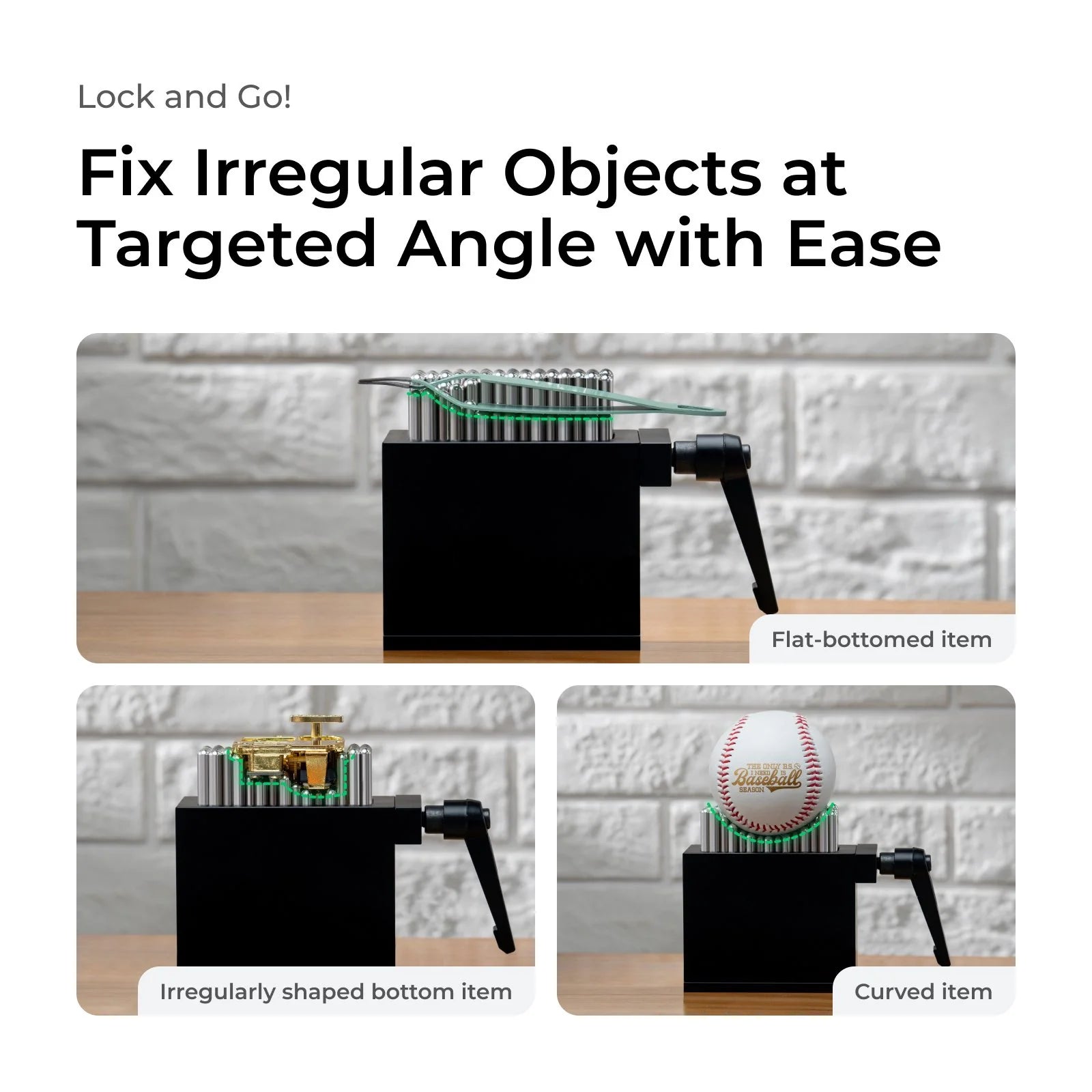

1. Secure Holding for Irregular Shapes
- Custom-Contoured Support – The adjustable stainless steel pins conform to uneven surfaces, ensuring a stable grip on objects with non-flat bases.
- Multi-Angle Fixation – Lock workpieces at precise angles (0°–90°) for consistent engraving and cutting results.
- Anti-Slip Design – Prevents material movement during high-speed laser operations.

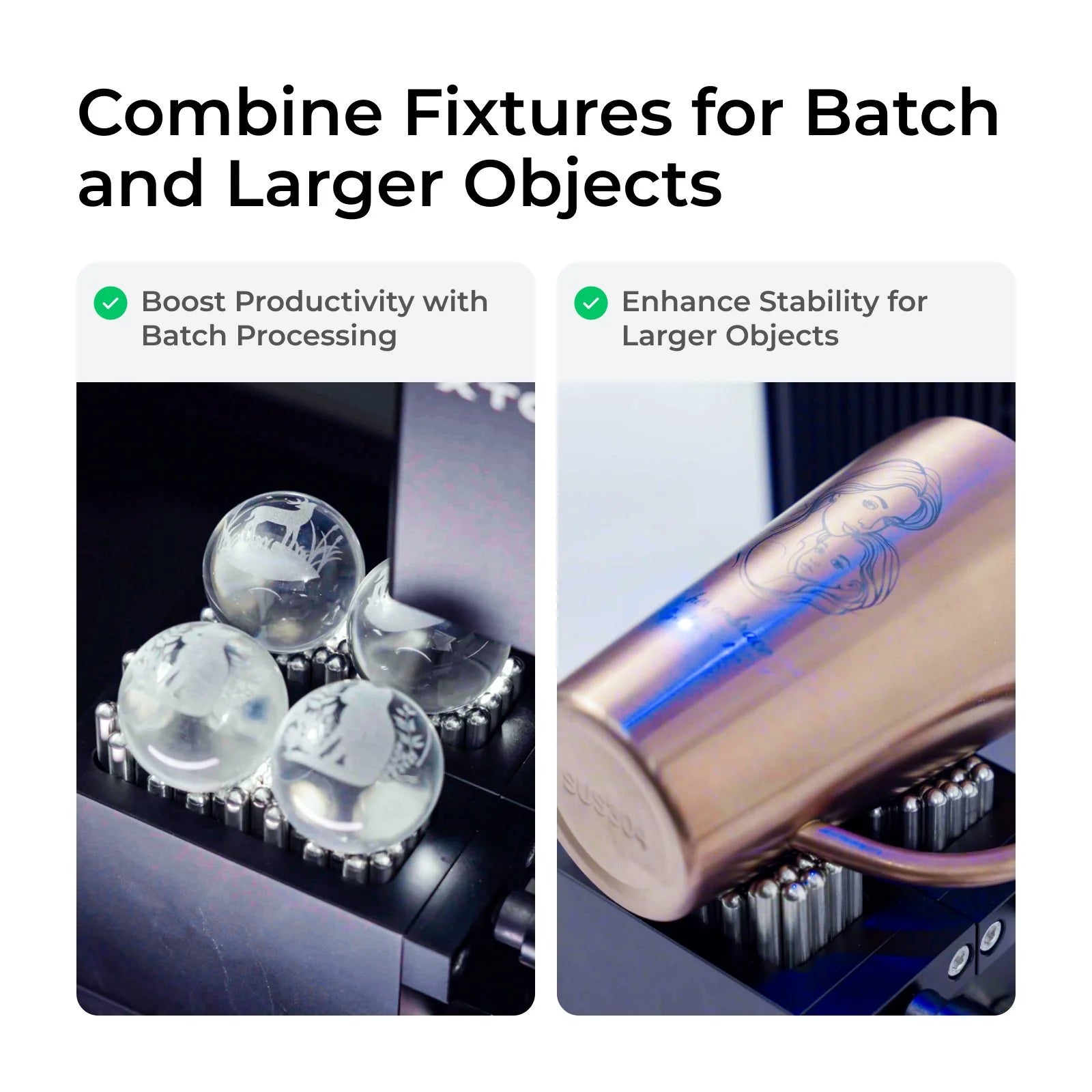

2. Optimized for Batch Processing
- Repeatable Positioning – Once configured, the fixture maintains its shape for rapid reloading of identical workpieces.
- Modular Expandability – Combine multiple fixtures to accommodate larger or longer objects (up to 500mm).
- Time-Saving Workflow – Eliminates the need for manual realignment between jobs.

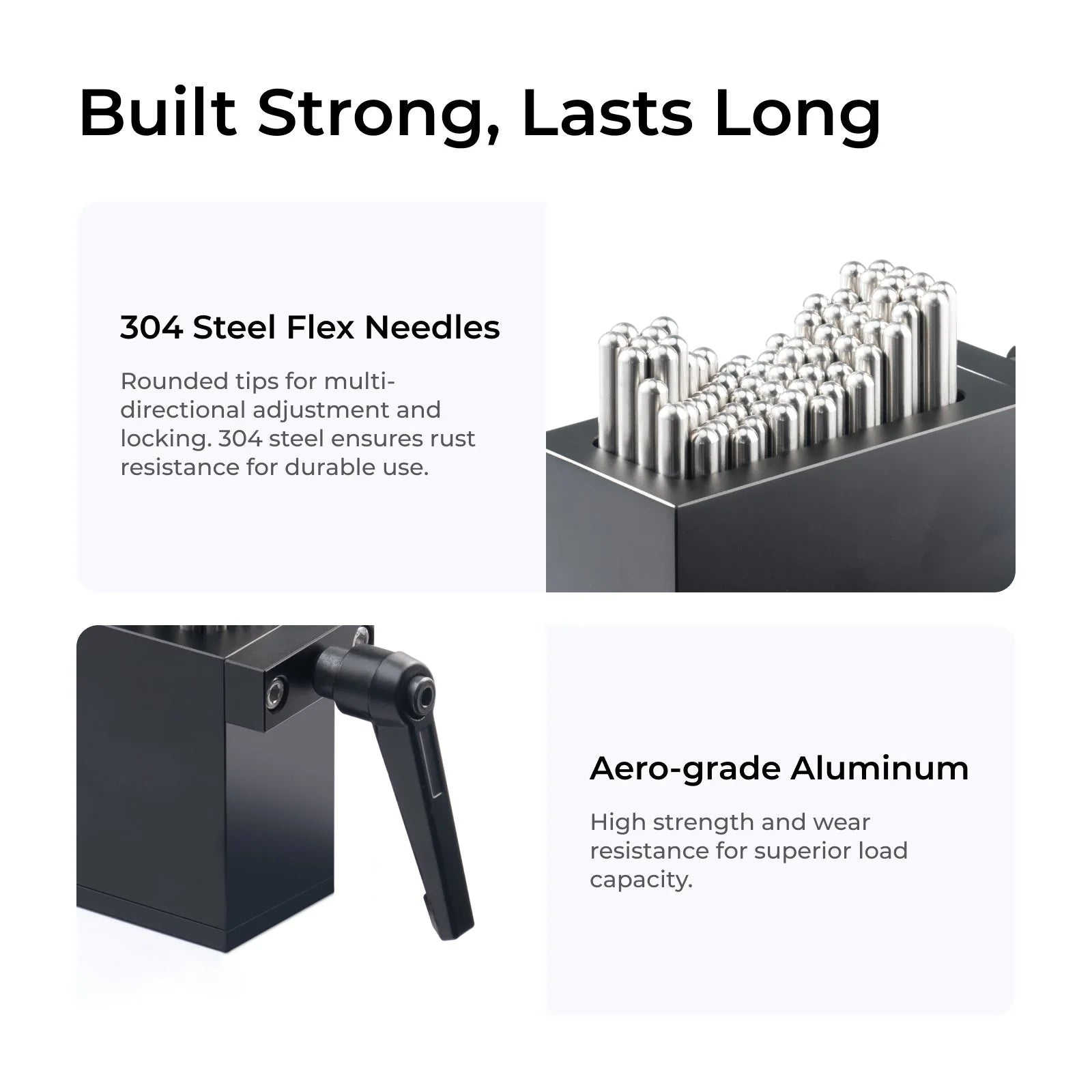

3. Rugged Construction for Industrial Use
- 304 Stainless Steel Pins – Resistant to corrosion, heat, and mechanical wear.
- Aircraft-Grade Aluminum Frame – Lightweight yet durable for long-term reliability.
- Precision Machining – Maintains tight tolerances for accurate laser positioning.

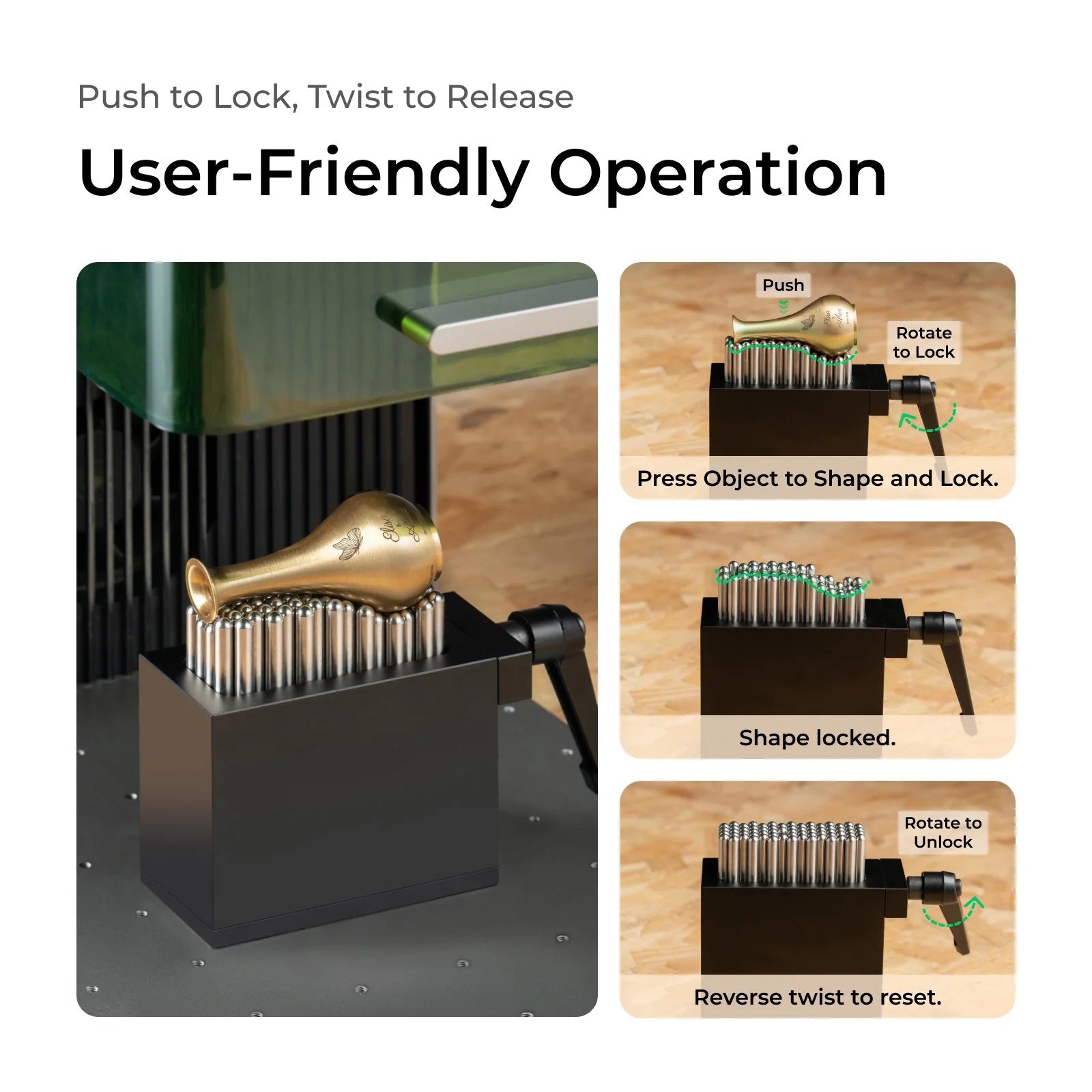

4. User-Friendly Operation
- Quick Setup – Simple press-and-twist mechanism for instant pin adjustment.
- Tool-Free Configuration – No additional clamps or hardware required.
- Beginner-Friendly – Intuitive design requires minimal training.
Technical Specifications
- Work Area: 30mm × 79mm (expandable via multiple units)
- Material Compatibility: Wood, acrylic, leather, coated metals, ceramics
- Construction: 304 stainless steel pins, aluminum alloy frame
- Max Object Size (Combined Fixtures): 500mm length
- Compatibility: Works with all xTool laser machines (requires riser base)
Ideal Applications
- Jewelry & Small Crafts – Secure rings, pendants, and curved items
- Industrial Parts Marking – Hold machined components with complex profiles
- Personalized Gifts – Engrave irregular surfaces on bottles, trophies, and decor
- Prototyping & Small Batch Production – Maintain consistency across multiple pieces
Package Includes
- xTool Flexible Fixture unit
- Installation guide
Why Choose the xTool Flexible Fixture?
This professional workholding solution bridges the gap between standard flatbed fixturing and specialized jigs. By combining military-grade materials with intelligent modular design, it delivers:
- Greater productivity through repeatable batch processing
- Higher accuracy with secure multi-angle positioning
- Longer tool life thanks to corrosion-resistant construction
Ideal for makers, manufacturers, and laser service providers needing reliable solutions for challenging workpieces. Compatible with the entire xTool laser ecosystem when used with appropriate riser accessories.
