xTool RA2 Pro - ملحق دوّار 4 في 1 للنقاش بالليزر

xTool RA2 Pro 4 في 1 ملحق دوار بالليزر 4 في 1 - نظام نقش بالليزر من الفئة الاحترافية

The Ultimate Rotary Solution for Laser Engraving

يمثل xToolRA2 Pro طفرة في تكنولوجيا الليزر الدوارة حيث يوفر تنوعًا غير مسبوق باعتباره أولملحق دوار حقيقي 4 في 1 في العالم للنقاشات بالليزر. صُمم هذا الملحق الاحترافي خصيصًا لأنظمة الليزر xTool، ويتيح هذا الملحق الاحترافي إمكانية النقش الدقيق على الأجسام الأسطوانية والكروية وغير المنتظمة بمرونة لا مثيل لها.

Technical Specifications

• Model: RA2 Pro Rotary Attachment

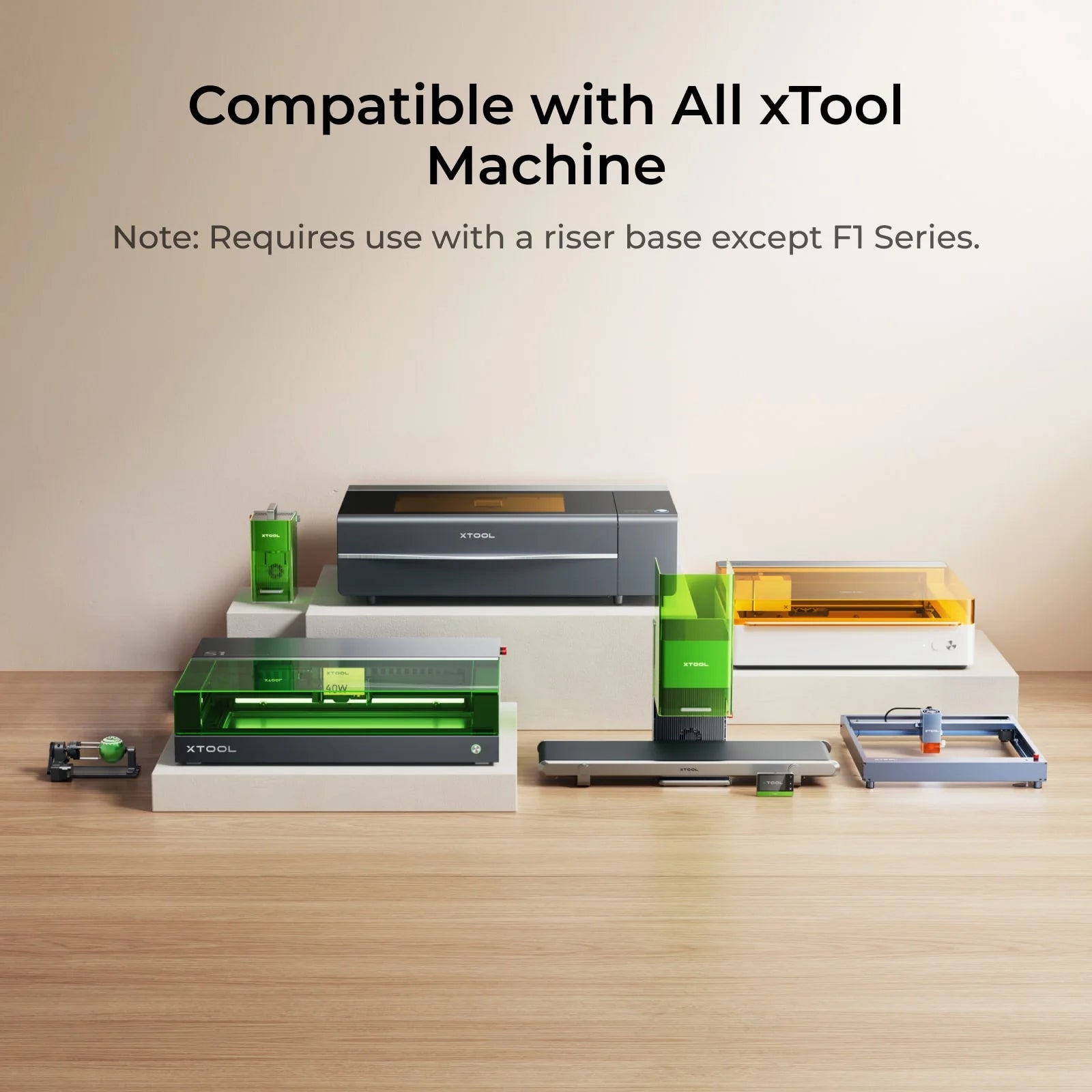

• Compatibility: P2, S1, F1 Ultra, F1, F1 Lite, M1 Ultra, D1 Pro

• Modes: Roller, Chuck, Sphere, and Ring configurations

• Engraving Diameter Range:

  • Roller: 3mm-198mm

  • Chuck: 0mm-100mm

  • Sphere: 25mm-100mm

  • Ring: 11mm-70mm

• Dimensions: 321×138×105mm

• Weight: 1.96kg

• توافق البرامج: xTool Creative Space، وLightBurn، وLightGRBL، وLightGRBL

Key Features & Benefits

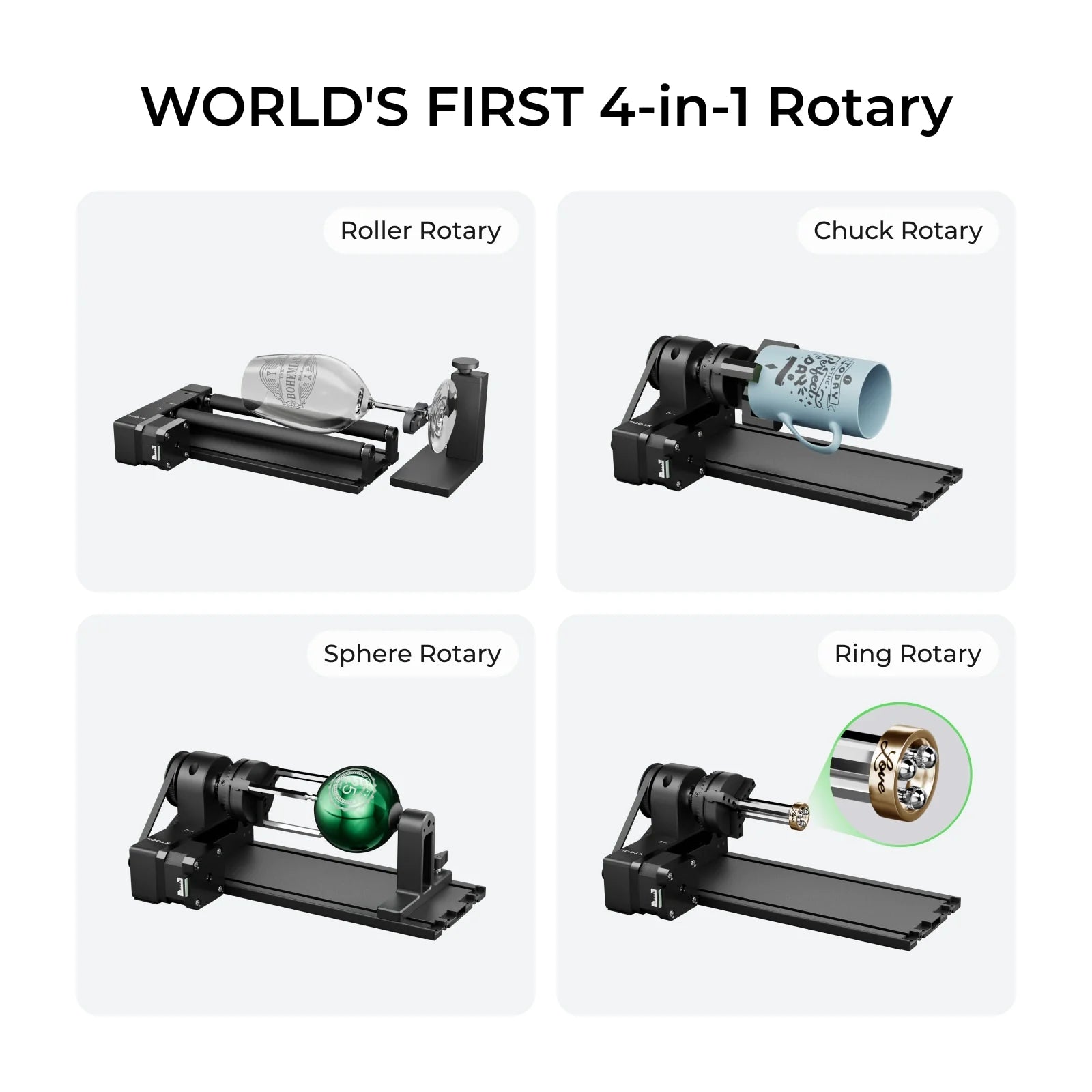

1. Four Professional Engraving Modes in One System

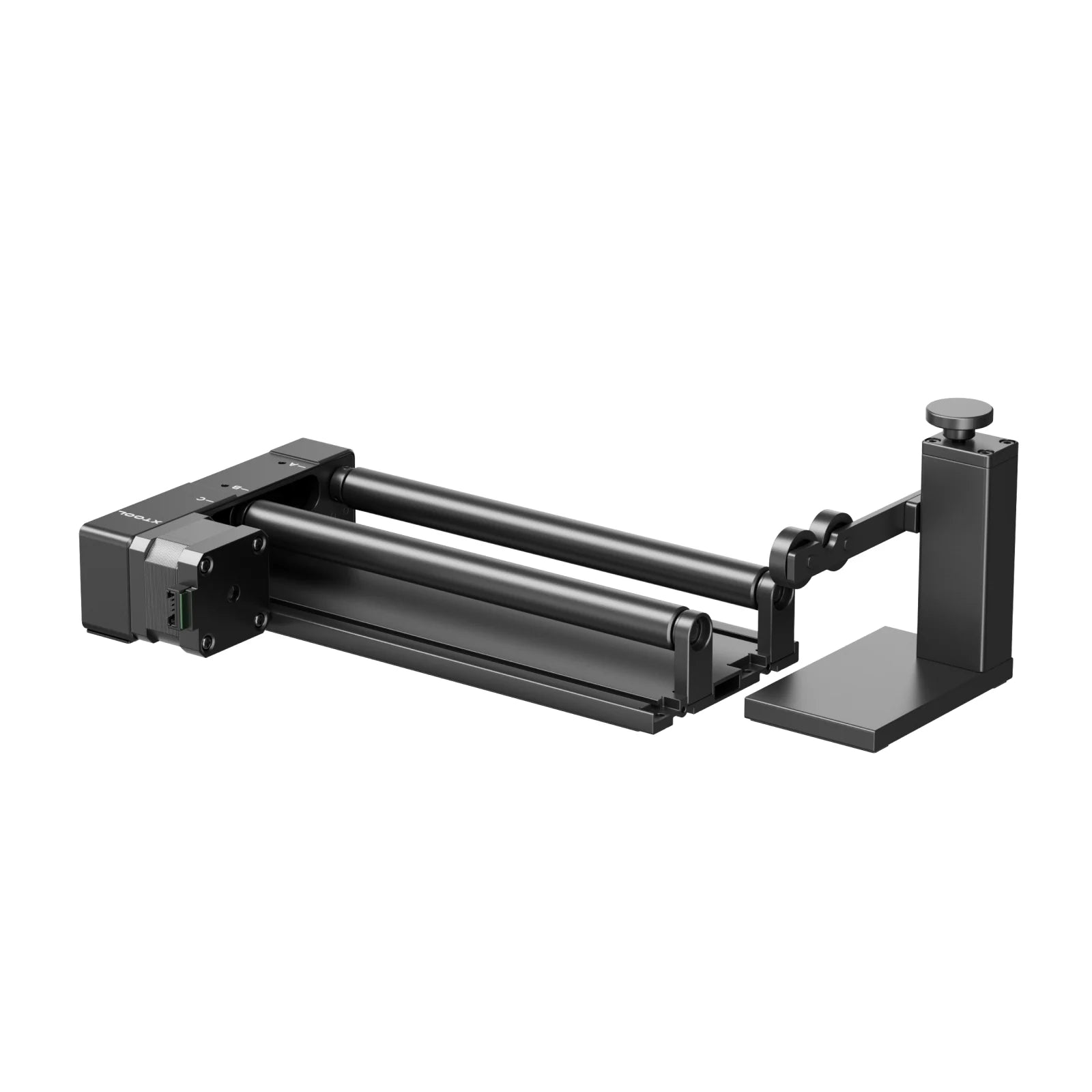

• Roller Rotary Mode: Handles extra-long cylinders and irregular objects (rolling pins, bottles, tapered mugs)

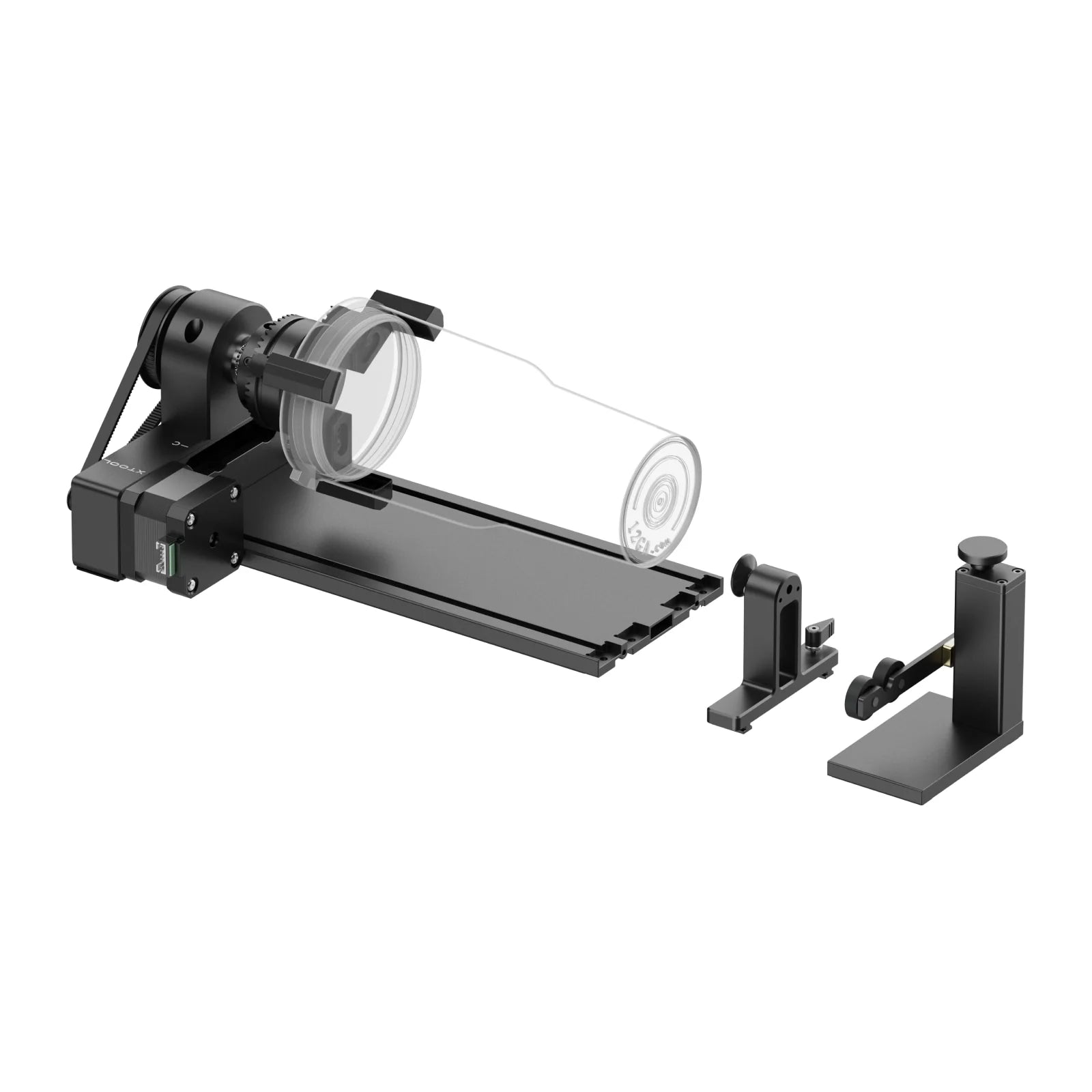

• Chuck Rotary Mode: Secures items with flat or irregular bases (cups, glasses, trophies)

• Sphere Rotary Mode: Perfect for 3D spherical objects (golf balls, ornaments, decorative spheres)

• Ring Rotary Mode: Specialized for jewelry engraving (wedding bands, signet rings)

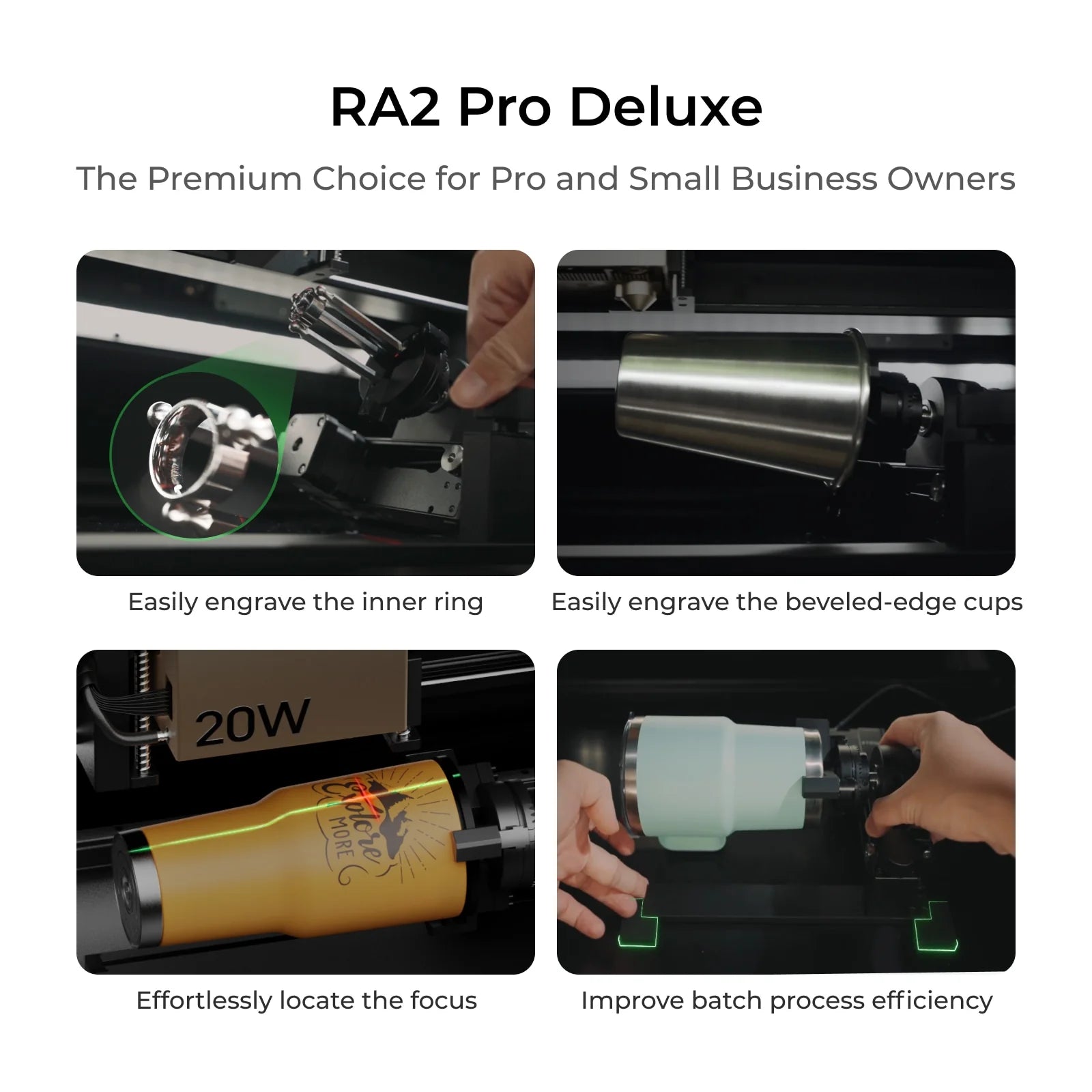

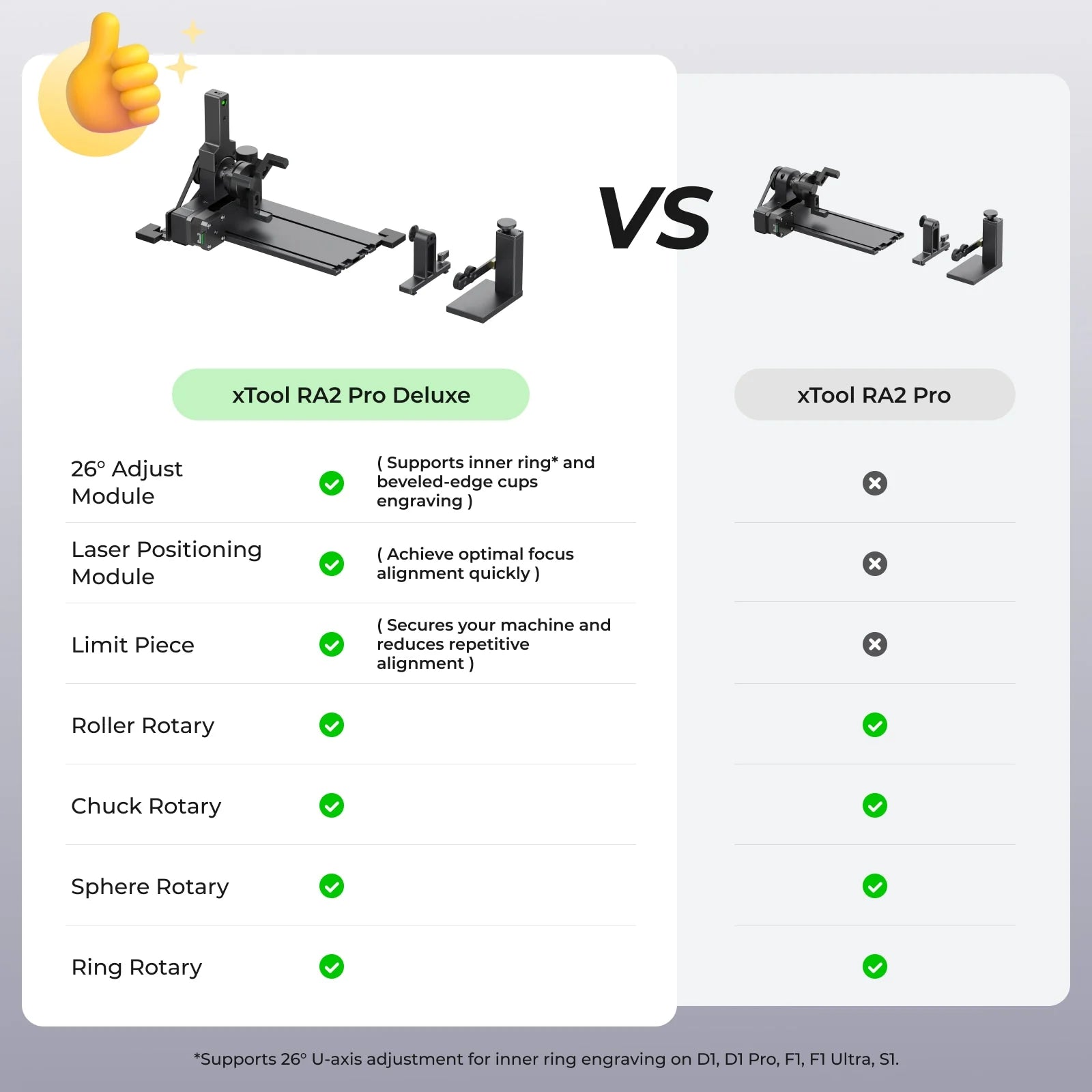

2. Advanced 26° Adjustable Module

• Precision U-axis adjustment enables:

  • Inner ring engraving for jewelry applications

  • Beveled-edge cup engraving

  • Angled surface customization

3. Enhanced Production Efficiency

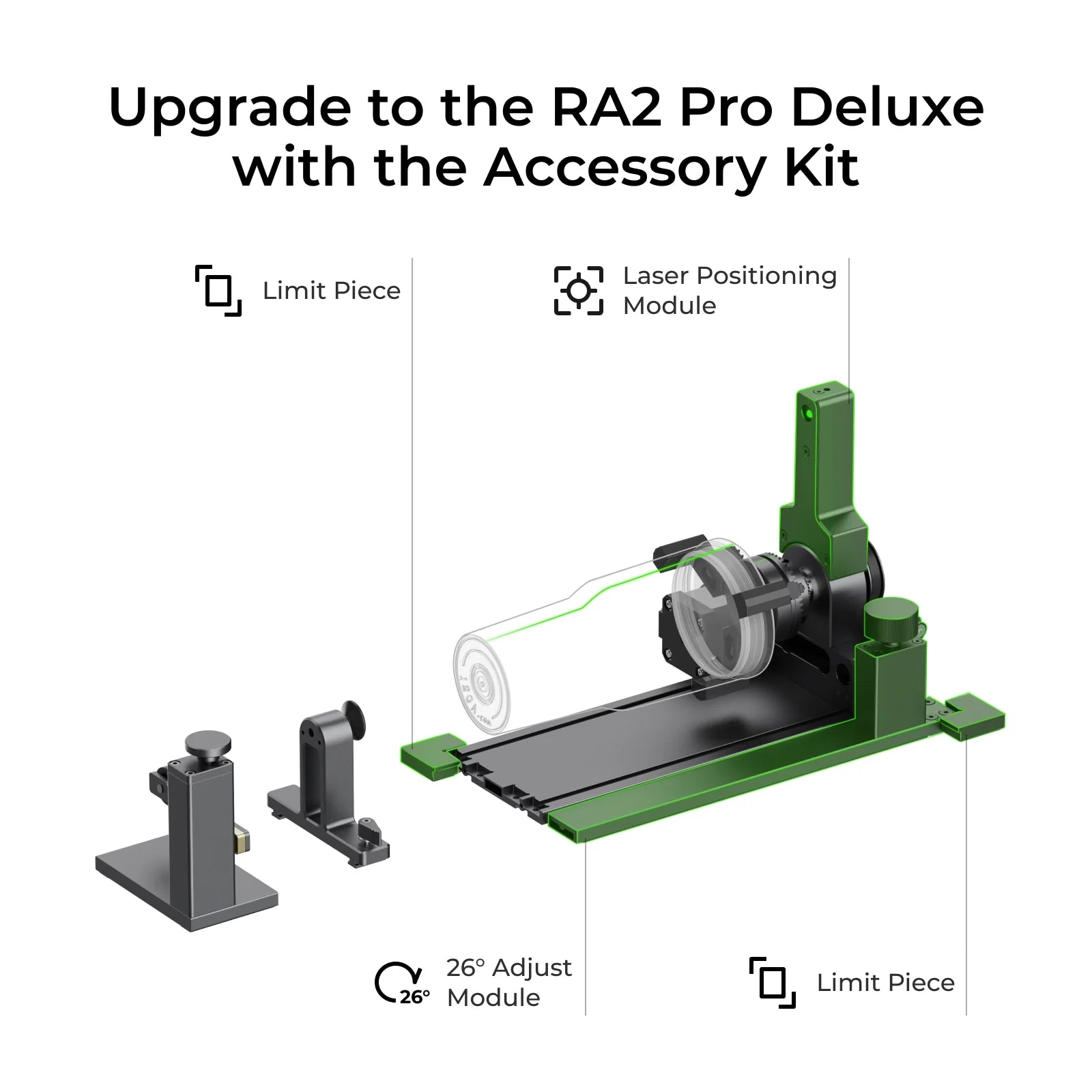

• Limit Piece Accessory: Enables batch processing with consistent positioning

• Quick-Change Mechanism: Switch between modes in seconds

• Universal Clamping System: Accommodates diverse object sizes and shapes

4. Professional-Grade Construction

• Industrial-strength aluminum alloy frame

• High-torque stepper motor for smooth rotation

• Non-slip rubberized rollers and chucks

• Precision gear system maintains positional accuracy

5. Intelligent Software Integration

• اكتشاف الوضع التلقائي في xTool Creative Space

• Customizable rotation speed and direction

• Seamless workflow with LightBurn for advanced users

Included Components

• RA2 Pro Main Unit

• All necessary mounting hardware

• Quick-start guide

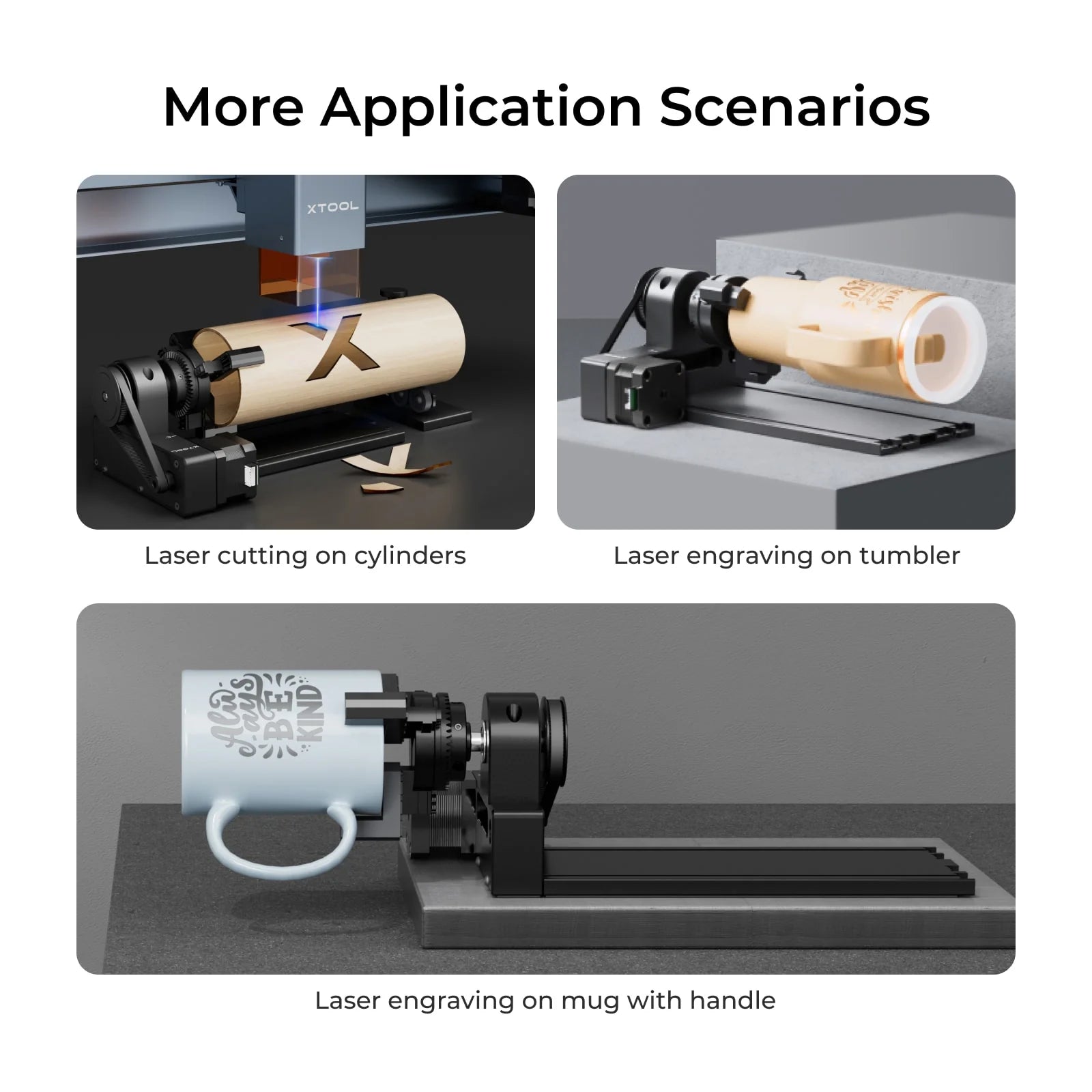

Recommended Applications

• Personalized Drinkware: Tumblers, wine glasses, water bottles

• Promotional Products: Pens, flashlights, cylindrical giveaways

• Jewelry Crafting: Ring engraving, pendant customization

• Home Decor: Vases, ornaments, decorative spheres

• Industrial Marking: Tools, equipment, cylindrical components

System Requirements

• يتطلب جهاز ليزر xTool ليزر متوافق

• Minimum 5W laser power recommended

• برنامج xTool Creative Space (مضمن) أو برنامج متوافق مع طرف ثالث

Why Choose the RA2 Pro?

This professional rotary system eliminates the need for multiple dedicated attachments, combining four essential engraving modes into one robust package. The innovative design addresses the limitations of traditional single-mode rotaries, offering:

• Greater creative freedom with spherical and inner ring capabilities

• Higher production throughput with batch processing features

• Superior engraving quality through precision engineering

• Reduced equipment costs by consolidating multiple functions

Ideal for small businesses, professional makers, and serious hobbyists seeking industrial-grade performance in a compact, user-friendly package.
